产品性能特点  PRODUCT PERFORMANCE CHARACTERISTICS

1. 本机型适用于圆瓶的全周贴，前后对称贴，定点式贴标。

2. 适用于矿泉水，饮料等行业的塑料瓶的不干胶贴标机。

3. 采用高速小惯量伺服电机与西门子 PLC 控制，操作简单，运行稳定可靠。

4. 采用螺杆和星轮配合进出瓶，确保高速运行时，产品进出流畅稳定。

5. 采用凸轮盘，齿轮机械旋转方式定位，利用瓶子自身的特点寻找定位点，大大提 高贴标的稳定性和精确度。

6. 出标站可 3 维空间调整，特别适用于有锥度的瓶型，且更换不同尺寸的产品调节 简单快捷。

7. 贴标速度可达 60 米 / 分钟。生产速度可达 24000 瓶 / 小时，可与灌装线连线生产， 大大提高了生产速度，节约生产成本。

1. This model is suitable for full circumference labeling of round bottles, symmetrical labeling before and after, and fixed-point labeling.

2.A self-adhesive labeling machine suitable for plastic bottles in industries such as mineral water and beverages.

3. It adopts high-speed small inertia servo motor and Siemens PLC control, with simple operation and stable and reliable operation.

4. The use of screws and star wheels in conjunction with bottle entry and exit ensures smooth and stable product entry and exit during high-speed operation.

5. Adopting cam discs and gear mechanical rotation for positioning, utilizing the characteristics of the bottle itself to find positioning points, greatly improving the stability and accuracy of labeling.

6. The labeling station can be adjusted in 3D space, especially suitable for bottle shapes with taper, and adjusting products of different sizes is simple and fast.

7. The labeling speed can reach 60 meters per minute. The production speed can reach 24000 bottles/hour, which can be connected to the filling line for production, greatly improving production speed and saving production costs.

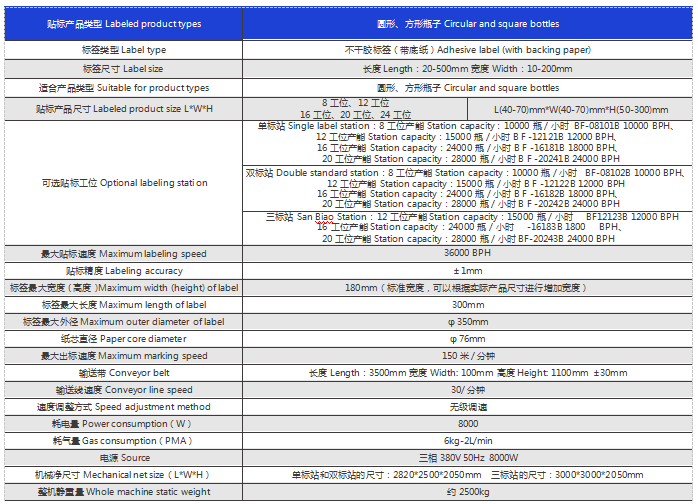

技术参数  TECHNICAL PARAMETER
